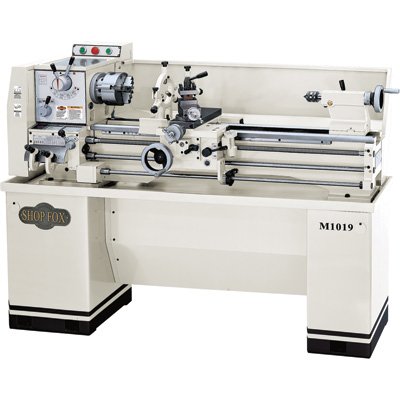

Shop Fox M1019 13-Inch by 40-Inch Metal Lathe

Shop Fox M1019 13-Inch by 40-Inch Metal Lathe Reviews

Other Picture

Shop Fox M1019 13-Inch by 40-Inch Metal Lathe Feature

• Swing over bed: 13-1/2-Inch, Swing over gap: 19-Inch, Swing over cross slide: 8-Inch, Bed width: 7-3/8-Inch
• Range of speeds: 78, 128, 210, 330, 510, 830, 1360, 2100 RPM
• Spindle nose: D1-4 Camlock, Spindle nose taper: MT #5, Spindle bore: 1-7/16-Inch
• Jog button and emergency stop
• Induction hardened bedways and flame hardened headstock gears, Cast iron construction throughout

The SHOP FOX Gear Head Lathe is designed for the smaller shop, with heavy-duty construction and precision with every feature. This lathe includes a 2 HP motor, 8 speeds, 3-and 4-jaw chucks, faceplate, 4-way turret tool post, live and dead centers, plus many other accessories to tackle those jobs you have always wanted to do. Stand Included: Yes, HP: 2, Volts: 220, single phase, Speed (RPM): 1,725, Spindle Speeds (qty.): 8, Center Height (in.): 45 1/2, Width Between Centers (in.): 40, Carriage Travel (in.): 35, Thread Cutting (in.): 4 TPI - 112 TPI, Thread Cutting (mm): 0.2 - 6, Dimensions L x W x H (in.): 71 1/2 x 26 x 52 1/2
