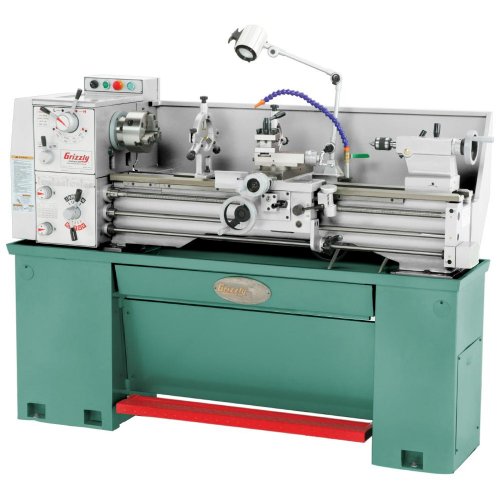

Grizzly G9036 13" x 40" Gear-Head Floor Lathe

Grizzly G9036 13" x 40" Gear-Head Floor Lathe Reviews

Other Picture

Grizzly G9036 13" x 40" Gear-Head Floor Lathe Feature

• 6" 3-jaw chuck with reversible top jaws 8" 4-jaw chuck with reversible jaws 12" face plate Steady rest Follow rest Chip pan Splash guard Stand Threading dial 4-way turret tool post 2 MT #3 dead centers (1 carbide tipped) Jog button and emergency stop Work light

Safety, reliability and convenience - the G9036 Floor Lathe has dozens of heavyweight features for a reasonable price. Driven by a powerful 2 HP, 220V motor, this metal monster will tackle the toughest machining jobs with ease. D1-4 cam-lock spindle is the most reliable and accurate chuck and plate mounting system for lathes. Add an extra long foot brake and apron mounted switch control and you have precise, safe control when threading or working up close to those difficult shoulders. Hardened gear-head gears make speed and feed changes fast and a pleasure to perform. Features like these will save you time and provide a wider margin of safety. Features: 2 HP motor, single phase Coolant system Apron mounted handle switch Front removable chip tray Specifications: Swing over bed: 13" Swing over gap: 18-3/4" Swing over saddle: 7-3/4" Distance between centers: 40" Bed width: 7-3/8" Hole through spindle: 1-7/16" Taper of spindle nose: MT#5 Cross slide travel: 6-1/8" Compound travel: 2-7/8" Tailstock barrel taper: MT#3 Tailstock barrel travel: 3-3/8" Number of speeds: 8 Range of speeds: 70, 115, 190, 300, 460, 755, 1255, 2000 RPM Motor: 2 HP, 220 Volt, single phase Height: 53-1/2" Length: 71-1/2" Width: 30" Net weight: 1320 lbs. Approx. shipping weight: 1555 lbs.
