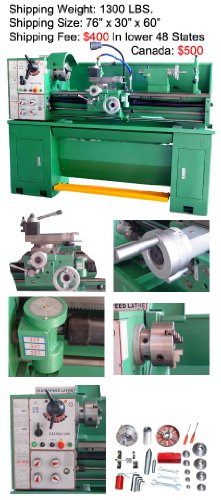

BOLTON 14" x 40" HIGH PRECISION TOOLROOM LATHE swing over bed 14'' spindle tape MT#5 Reviews
Other Picture
BOLTON 14" x 40" HIGH PRECISION TOOLROOM LATHE swing over bed 14'' spindle tape MT#5 Feature
- swing over bed 14''
- 14" x 40"
- 4JAW CHUCK
- FACE PLATE 10"
- voltage 220v/1PH or 3PH
SPECIFICATIONS:
swing over bed 14''
swing over support 8.80"
swing over gap 19.80"
center height 7"
distance between center 40"
bed width 7.36"
bed height 11.40"
motor outpu 1.5kw 2HP
voltage 220v/1PH or 3PH
spindle bore 1.50"
cam lock system D1-4
spindle tape MT#5
cross slide travel 6.30"
compound slide travel 2.68"
leadscrew diameter 0.87"
feed rod diameter 0.75"
cutting tool 16mm*16mm 0.63*0.63"
imperial thread 4-56 T.P.I
metric thread 0.4-7mm
longtiudinal feed 0.052-1.392mm/rev 0.002-0.054"/rev
cross feed 0.014-0.380mm/rev 0.00055-0.015"/rev
tailstock quill diameter & taper 32mm MT#3
Feature
a. Full gead head
b high precision light lathe
c. Gap lathe 19.80"
d. bigger swing diameter and spindle light lathe
e. Cam locking system
f. lower noise
g. Install quick tool post
h. foot braker and coolant ,work lamp
i 4jaw chuck ,face plate, steay and follow steady
STAND ACCESSORIES:
1. 4JAW CHUACK
2. ARBOR
3 FACE PLATE 10"
4. SCREW DRIVER
5 QUICK TOOL POST
6. DEAD CENTER
7 TOOL BOX
8. CHANG GEAR
9.OILING GUN
10. ALLEN WRENCH
11 DOUBLE OPEN END WRENCH
